Non-partition HEPA Filter

Description

Effciency：99.99% @ 0.3um, 99.995% @ 0.3um

Standard: EN1822, ClassH13/H14

Durable temperature: 80℃

Durable humidity: 100% RH (NO Dew)

Features:

High efficiency filters without partitions are available in a variety of configurations for strict cleaning needs such as clean rooms, clean workstations, aseptic operating stations and windmill filter sets. The mini pleats are designed to extend the service life of the filter and reduce pressure loss.

Filter material:

filter material is ultra-fine glass fiber. Continuous filter has hot melt adhesive as partition, so that the air passes through filter with the lowest pressure loss.

Frame:

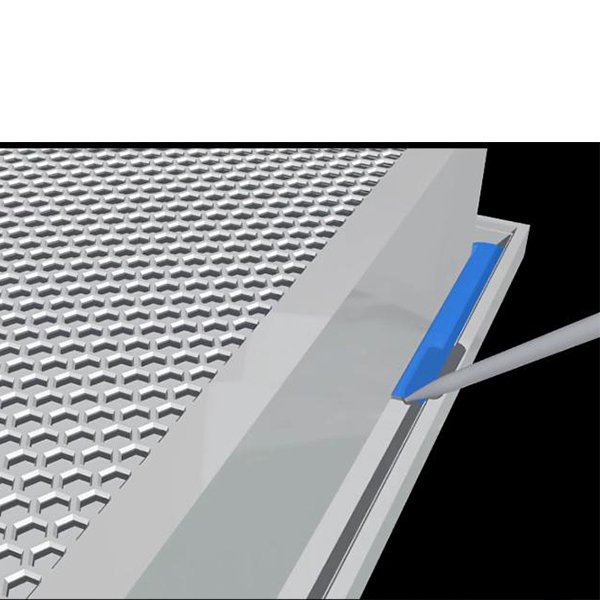

the inside of the outer frame is sealed with sealant to prevent filter gap and leakage. Aluminum extruded frame is anodized to increase hardness and durability of anti-corrosion. Seal with polyurethane glue to the aluminum extrusion frame. It can achieve a completely airtight leak-free, and double-sided surfacing mesh.
